A Tidyverse-Style Toolbox for Actigraphy Data Analysis • actverse

Overview

actverse is an R package that offers a comprehensive toolkit for processing, analyzing, and visualizing actigraphy data. It is designed to support sleep and chronobiology researchers by streamlining workflows and enhancing reproducibility in actigraphy research.

The package is built on tidyverse principles and integrates seamlessly with the tidyverse ecosystem, ensuring a consistent and user-friendly experience for data manipulation and analysis.

If you find this project useful, please consider giving it a star!

Installation

You can install actverse using the remotes package:

remotes::install_github("danielvartan/actverse")

Usage

The R ecosystem offers a wide variety of time series standards, and selecting the right one was an important decision in developing actverse. A consistent standard for time objects is essential, as time can be represented in many ways and may be based on different numerical systems. For packages that follow tidyverse principles, we believe the tsibble package provides the best time series standard. As its name suggests, tsibble extends the tidyverse tibble object for time series data.

Most actverse functions require your data to be in the tsibble format. Converting your data is straightforward and can significantly improve your experience working with time series in R. Please refer to the tsibble documentation for guidance on adapting your data.

Read/Write

read_acttrust(): Read, tidy, and validate an ActTrust file.
write_acttrust(): Write a tsibble to a readable ActTrust file.

Example:

file <- get_from_zenodo(
  doi = "10.5281/zenodo.4898822",
  dir = tempdir(),
  file = "processed.txt"
)

data <- file |> read_acttrust(tz = "America/Sao_Paulo")

library(dplyr)

data |> glimpse()
#> Rows: 51,806
#> Columns: 17
#> $ timestamp            <dttm> 2021-04-24 04:14:00, 2021-04-24 04:15:00, 202…
#> $ pim                  <dbl> 7815, 2661, 3402, 4580, 2624, 3929, 5812, 3182…
#> $ tat                  <dbl> 608, 160, 243, 317, 255, 246, 369, 270, 373, 1…
#> $ zcm                  <dbl> 228, 64, 80, 125, 33, 105, 171, 54, 189, 64, 6…
#> $ orientation          <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0…
#> $ wrist_temperature    <dbl> 26.87, 27.18, 27.68, 27.86, 28.04, 28.13, 28.2…
#> $ external_temperature <dbl> 24.62, 25.06, 25.50, 25.75, 25.94, 26.06, 26.3…
#> $ light                <dbl> 3.58, 5.23, 3.93, 4.14, 3.16, 3.63, 11.53, 2.4…
#> $ ambient_light        <dbl> 1.45, 2.12, 1.59, 1.68, 1.28, 1.47, 4.67, 0.97…
#> $ red_light            <dbl> 0.57, 0.86, 0.64, 0.67, 0.51, 0.56, 3.22, 0.37…
#> $ green_light          <dbl> 0.66, 0.95, 0.71, 0.75, 0.57, 0.68, 3.49, 0.44…
#> $ blue_light           <dbl> 0.24, 0.36, 0.26, 0.28, 0.21, 0.30, 1.48, 0.20…
#> $ ir_light             <dbl> 0.17, 0.25, 0.20, 0.20, 0.16, 0.18, 1.00, 0.13…
#> $ uva_light            <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0…
#> $ uvb_light            <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0…
#> $ event                <dbl> 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0…
#> $ state                <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0…

Sleep Statistics

sri(): Compute Phillips et al. Sleep Regularity Index (SRI).
state_prop(): Compute the proportion of time spent in a specific state (e.g., Sleeping, Awake).

Example:

Compare the results with the actogram plot shown in the following sections.

sri_data <- data |> sri()

sri_data
#> # A tsibble: 1,440 x 5 [1m]
#>   time   state      previous_state agreement    sri
#>   <time> <list>     <list>         <list>     <dbl>
#> 1 00'00" <fct [36]> <fct [36]>     <lgl [36]>  77.1
#> 2 01'00" <fct [36]> <fct [36]>     <lgl [36]>  77.1
#> 3 02'00" <fct [36]> <fct [36]>     <lgl [36]>  77.1
#> 4 03'00" <fct [36]> <fct [36]>     <lgl [36]>  77.1
#> 5 04'00" <fct [36]> <fct [36]>     <lgl [36]>  77.1
#> 6 05'00" <fct [36]> <fct [36]>     <lgl [36]>  77.1
#> # ℹ 1,434 more rows

library(rutils) # github.com/danielvartan/rutils

sri_data |>
  rutils:::stats_summary("sri", threshold = NULL) |>
  print(n = Inf)
#> # A tibble: 15 × 2
#>    name     value
#>    <chr>    <chr>
#>  1 n        1440
#>  2 n_rm_na  1440
#>  3 n_na     0
#>  4 mean     58.7795701029482
#>  5 var      785.141504008496
#>  6 sd       28.0203765857723
#>  7 min      -25
#>  8 q_1      37.1428571428571
#>  9 median   63.6363636363637
#> 10 q_3      86.6666666666667
#> 11 max      100
#> 12 iqr      49.5238095238095
#> 13 range    125
#> 14 skewness -0.401815749365758
#> 15 kurtosis 2.10073487543524

library(ggplot2)
library(scales)

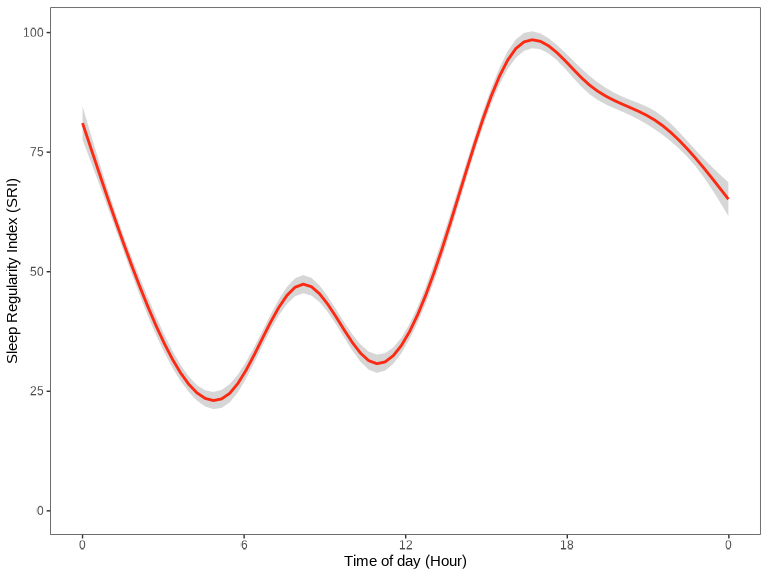

sri_data |>
  ggplot(ggplot2::aes(x = time, y = sri)) +
  geom_smooth(color = "#FC2913") +
  labs(
    x = "Time of day (Hour)",
    y = "Sleep Regularity Index (SRI)"
  ) +
  scale_x_time(
    breaks = breaks_width("6 hours"),
    labels = label_time("%-H") # Use "%#H" for Windows
  ) +
  scale_y_continuous(limits = c(0, NA)) +
  actverse:::get_actverse_theme()

Period Functions

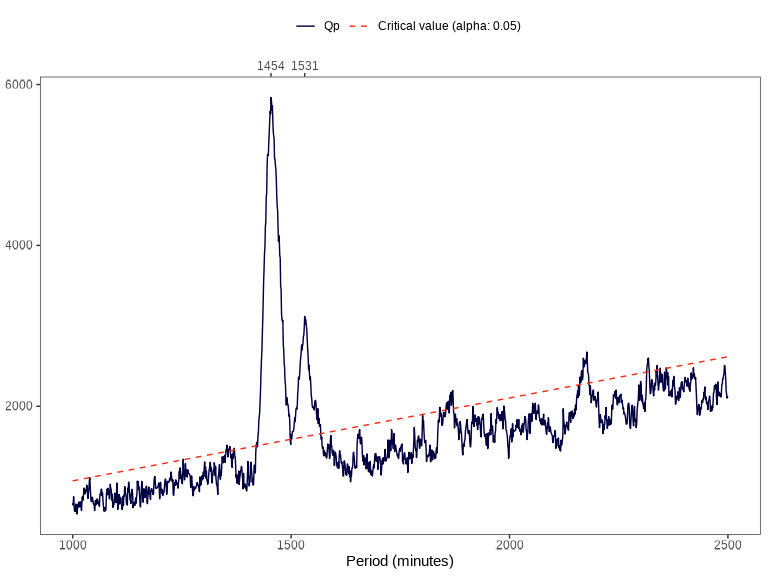

periodogram(): Compute Sokolove & Bushell’s \(\chi^{2}\) periodogram.

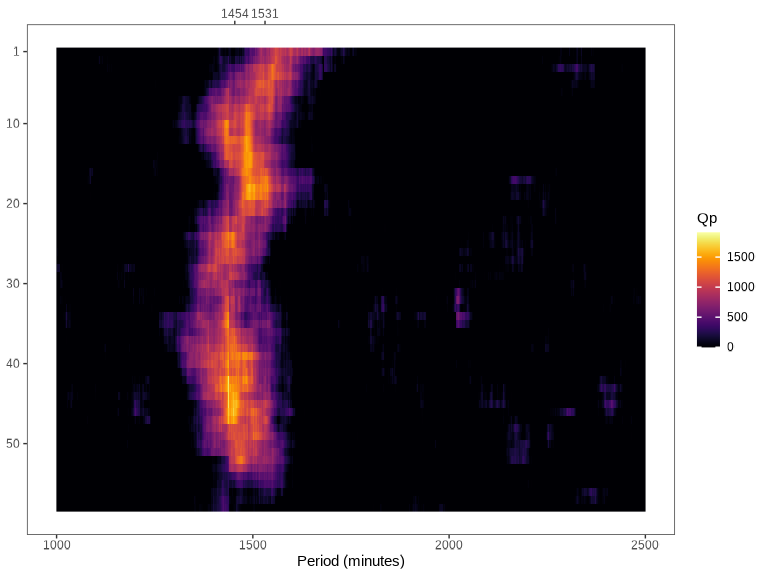

spectrogram(): Create a spectrogram plot based on Sokolove & Bushell’s \(\chi^{2}\) periodogram.

Example:

data |> periodogram("pim")

data |> spectrogram("pim")

Data Visualization

We strongly recommend using the ragg package as your backend graphics device for complex data visualizations. It is faster and produces higher quality images than R default graphics device.

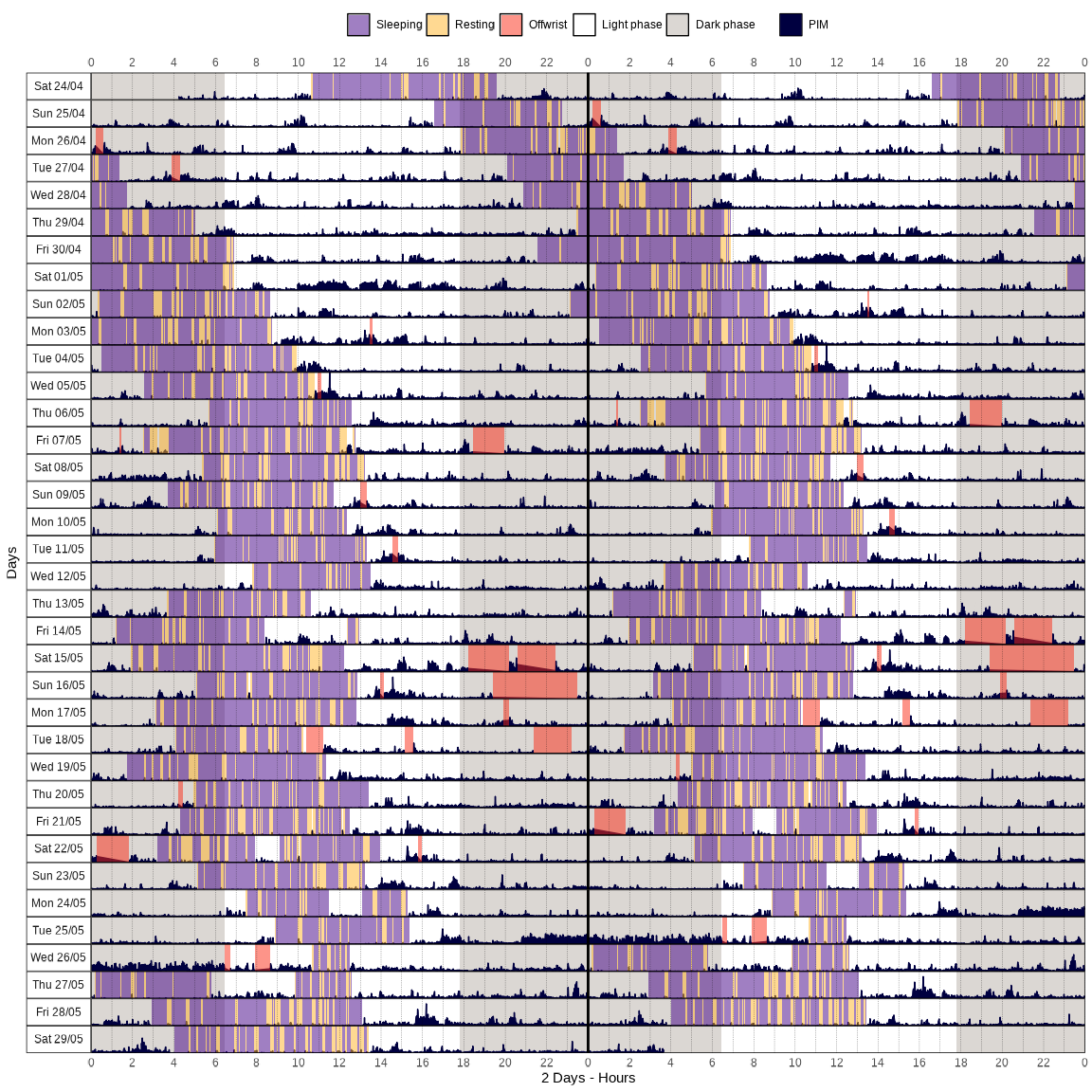

actogram(): Create an actogram plot from actigraphy data.

data |>
  actogram(
    col = "pim",
    days = -1,
    latitude = -23.55065,
    longitude = -46.63338,
    double_plot = TRUE
  )

Data Interpolation

na_approx() na_locf() na_overall_mean() na_overall_median() na_overall_mode() na_spline() na_weekly_mean() na_zero() na_plot(): Interpolate missing values in a numeric vector.

Example:

x <- c(NA, 1, 5, 10, NA, 5, 10, 1, NA, 10, 1, 5, NA, NA)
index <- seq(as.Date("2020-01-01"), as.Date("2020-01-14"), by = "day")

na_approx(x, index, fill_na_tips = TRUE)
#>  [1]  1.0  1.0  5.0 10.0  7.5  5.0 10.0  1.0  5.5 10.0  1.0  5.0  5.0  5.0

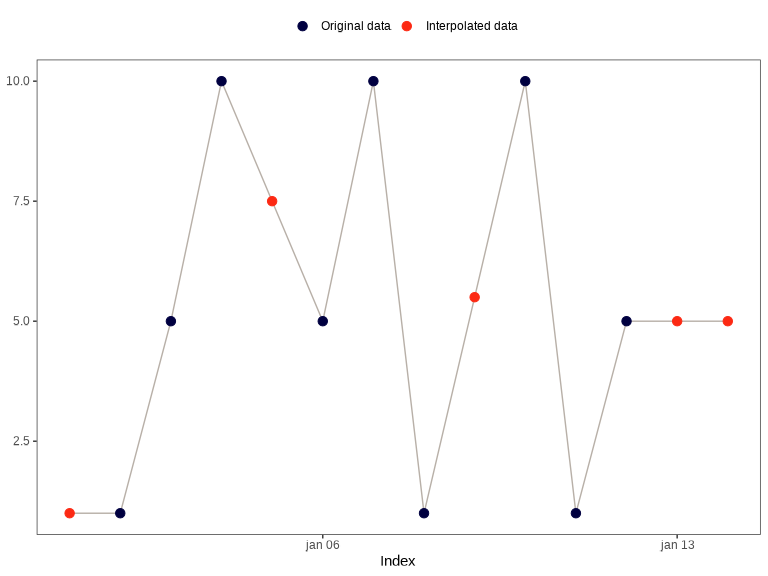

na_plot(x, index, na_approx(x, index, fill_na_tips = TRUE))

API Clients

get_from_zenodo(): Get data from a Zenodo record.
get_sun_stats(): Get sun related statistics from different APIs.

Example:

library(rutils) # github.com/danielvartan/rutils

get_sun_stats(
  latitude = -23.5489,
  longitude = -46.6388,
  tz = "America/Sao_Paulo"
) |>
  rutils:::list_as_tibble() |>
  print(n = Inf)
#> # A tibble: 18 × 2
#>    name              value
#>    <chr>             <chr>
#>  1 date              2025-06-05
#>  2 latitude          -23.5489
#>  3 longitude         -46.6388
#>  4 tz                America/Sao_Paulo
#>  5 sunrise_start     06:44:16
#>  6 sunrise_end       06:46:50
#>  7 golden_hour_end   07:17:28
#>  8 solar_noon        12:06:31
#>  9 golden_hour_start 16:55:34
#> 10 sunset_start      17:26:13
#> 11 sunset_end        17:28:46
#> 12 dusk              17:53:17
#> 13 nautical_dusk     18:21:18
#> 14 night_start       18:48:54
#> 15 nadir             00:06:31
#> 16 night_end         05:24:08
#> 17 nautical_dawn     05:51:44
#> 18 dawn              06:19:45

Other Features

actverse also comes with many utility functions and provides actigraphy datasets for testing and learning purposes.

All functions are thoroughly documented, with detailed explanations of the underlying methodologies and computational guidelines. For a complete list of available functions and their documentation, click here.

Example:

file |>
  read_acttrust(regularize = FALSE) |>
  find_epoch()
#> $best_match
#> [1] 60
#>
#> $prevalence
#> # A tibble: 4 × 2
#>   epoch proportion
#>   <dbl>      <dbl>
#> 1    60  1.00
#> 2    86  0.0000193
#> 3    94  0.0000193
#> 4   101  0.0000193

How to Cite

citation("actverse")
#> To cite {actverse} in publications use:
#>
#>   Vartanian, D., Matias, V. A., Serrano, C. A. M., & Benedito-Silva,
#>   A. A. (2025). {actverse}: A Tidyverse-style toolbox for actigraphy
#>   data analysis [Computer software, R package].
#>   https://danielvartan.github.io/actverse/
#>
#> A BibTeX entry for LaTeX users is
#>
#>   @Misc{,
#>     title = {{actverse}: A Tidyverse-style toolbox for actigraphy data analysis},
#>     author = {Daniel Vartanian and Vinicius Alves Matias and Cassio Almeida Mattos Serrano and Ana Amélia Benedito-Silva},
#>     year = {2025},
#>     url = {https://danielvartan.github.io/actverse/},
#>     note = {R package},
#>   }

License

actverse code is released under the MIT license. This means you can use, modify, and distribute the code freely, as long as you include the original license and copyright notice in any copies or substantial portions of the software.

Contributing

Contributions are welcome, including bug reports. Take a moment to review our Guidelines for Contributing.

You can also support the development of actverse by becoming a sponsor. Click here to make a donation. Please mention actverse in your donation message.
